Stacked pleated filter media of dust collector cartridge filters in different materials

Polyester Dust Collector Cartridge Filter

Home Products Dust Dust Collector Cartridge FiltersPolyester Dust Collector Cartridge Filter

Dust

Polyester Dust Collector Cartridge Filter – Large Filtration Area & Low Resistance

The pleated filter media of polyester dust collector cartridge filter are made from polyester fiber through a thermally bonded spunbond non-woven process. This design significantly increases the filtration area, effectively reduces operating resistance, and improves dust removal efficiency (with a filtration efficiency of over 99.5% for particles ≥ 0.3 μm).

It is suitable for most dust collection systems operating at ambient temperatures ( ≤ 120 °C), and is widely used in industries such as metal processing, welding and grinding, woodworking, grain, construction materials, and pharmaceuticals.

A white polyester fiber dust collector cartridge filter placed on a flat surface

Features

Excellent filtration performance. Base filtration efficiency exceeds 99.5%, and with membrane treatment, filtration efficiency is further enhanced (> 99.9%).
High mechanical strength. Polyester fiber material offers exceptional toughness and high tensile strength at break, making it resistant to deformation and capable of withstanding frequent pulse cleaning.
Reusable. The cartridge filter can be washed with water or air, facilitating maintenance, extending service life, and reducing operating costs.
Multiple functional treatments. Custom options such as ePTFE membrane, anti-static, and flame-retardant treatments are available to meet different dust control requirements.
Low operating resistance & energy-saving. With a low pressure drop, the cartridge filter contributes to energy-efficient operation and making it suitable for continuous operation.

Structure

Gasket: Prevents gas leakage and secures the filter cartridge in place during pulse cleaning to avoids vibration-induced displacement.
Top end cap: Provides structural support, sealing, and installation positioning. Available in various styles, sizes, and materials to match different dust collector models and operating conditions.
Metal outer guard mesh / band: Constructed from galvanized or stainless steel mesh or binding strap to support the filter media, reinforce the cartridge filter, and prevent deformation.
Pleated filter media: Filter media is processed into a large-area, corrugated form with specific pleat pitch and height.
Metal inner protective mesh: Made from galvanized or stainless steel mesh to support the filter media and enhance resistance to negative pressure.
Bottom end cap: Available in closed or perforated designs, with different end cap styles, sizes, and materials according to customer requirements.

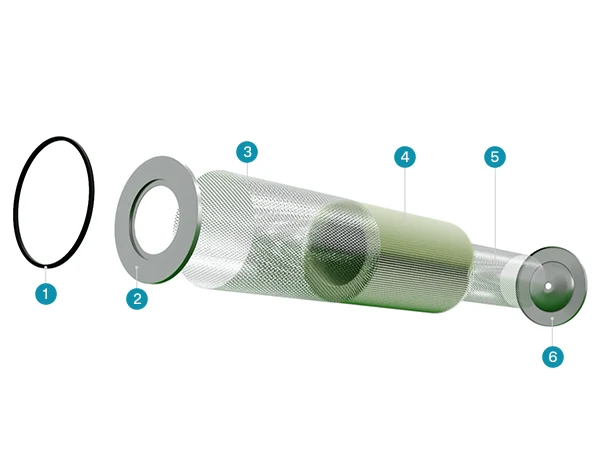

Exploded view of polyester dust collector cartridge filter components

Filter Media Selection

Table 1: Polyester Dust Collector Cartridge Filter Selection
Model	Filter Media	Post-Treatment Method	Basis Weight (g/m²)	Operating Temperature (°C)	Thickness (mm)	Acid Resistance	Alkali Resistance
PFC-PE	polyester fiber	–	240–330	120	0.61	Good	Good
PFC-PEM	polyester fiber	ePTFE membrane	240–330	120	0.61	Good	Good
PFC-PEW	polyester fiber	Water- and oil-repellent	240–330	120	0.61	Good	Good
PFC-PES	polyester fiber	anti-static	240–330	120	0.61	Good	Good
PFC-PEMS	polyester fiber	ePTFE membrane, anti-static	240–330	120	0.61	Good	Good
PFC-PET	polyester fiber	Water- and oil-repellent, Anti-static	240–330	120	0.62	Good	Good
PFC-PEF	polyester fiber	Flame-retardant	240–330	120	0.61	Good	Good
PFC-PEMSF	polyester fiber	ePTFE membrane, anti-static, flame-retardant	240–330	120	0.62	Good	Good
PFC-PEP	Polyester fiber spunlace felt	–	300	130	0.8	Good	Good
PFC-PEC	Carbon black anti-static polyester fiber	ePTFE membrane / flame-retardant	263	120	0.6	Good	Good

Specification

Table 2: Polyester Dust Collector Cartridge Filter Specifications
Model	PFC-PE
Product name	Polyester dust collector cartridge filter
End cap material	Carbon steel / galvanized / stainless steel / plastic
Top end cap outer diameter (mm)	350
Top end cap inner diameter (mm)	240
Bottom end cap outer diameter (mm)	350
End cap hole size (mm)	14 / 20 / 25
Cartridge filter length (mm)	660
Filtration area (m²)	10.9–13.7
Filtration efficiency (%)	99.5
Operating temperature (°C)	120
Post-treatment	ePTFE membrane, water-repellent, oil-repellent, anti-static, flame-retardant, etc.
Note: Parameters such as end caps, dimensions, and filtration area of dust collector cartridge filter can be customized according to customer requirements.
